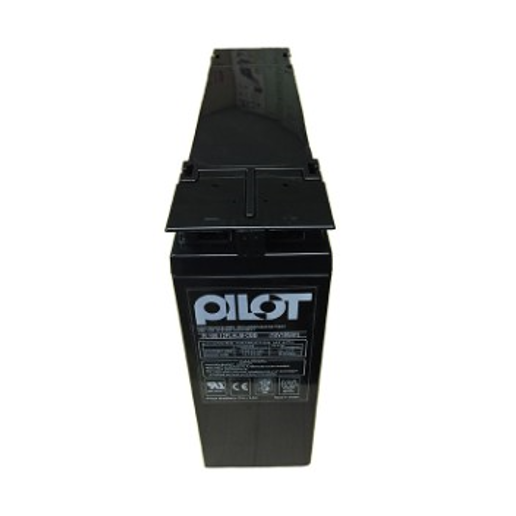

Telecommunication Front-End Type

CBB Lead-Carbon Series

Telecommunication Front-End Type

  • Use: Uninterruptible Power Supply (UPS) Equipment
★ Maintenance-Free
★ High Capacity
★ Lightweight
★ Deep Cycle
★ Low Self-Discharge Rate
★ Low Internal Resistance
  • Combines characteristics of both lead-acid batteries and supercapacitors
  • Excellent low-temperature start-up capability
  • Low internal resistance, with 1.7 times the charging performance of lead-acid batteries
  • Safe and effective explosion-proof venting design
  • Front-terminal design for easy installation
  • Reliable sealing performance, no leakage during use
  • Maintenance-Free (no need for water replenishment)
  • Absorbent Glass Mat (AGM) technology enables effective gas recombination
  • Long lifespan, low self-discharge rate
  • Compliant with IATA/A67 and IMDG/238 regulations for transportation
  • UL 1989 certified



Model Name Voltage Capacity External Dimensions Internal Resistance Weight Max Float Charging Current
   V   AH/10HR Length Width Height mΩ lbs kg (A)
PL50-12FLHLM-CBB 12 50 10.94in 278mm 4.06in 103mm 7.76in 197mm 5 33 15 15
PL100-12FLHLM-CBB 12 100 20in 508mm 4.17in 106mm 9.29in 236mm 4.2 73.7 33.5 30
PL105-12FLHLM-CBB 12 105 15.55in 395mm 4.17in 106mm 11.4in 289.5mm 3.8 72.6 33 31.5
PL150-12FLHLM-CBB 12 150 21.69in 551mm 4.31in 109.5mm 11.43in 288mm 4 89.65 40.75 45
