  • Lead-acid Battery
Cycle Ultra Long Life Type

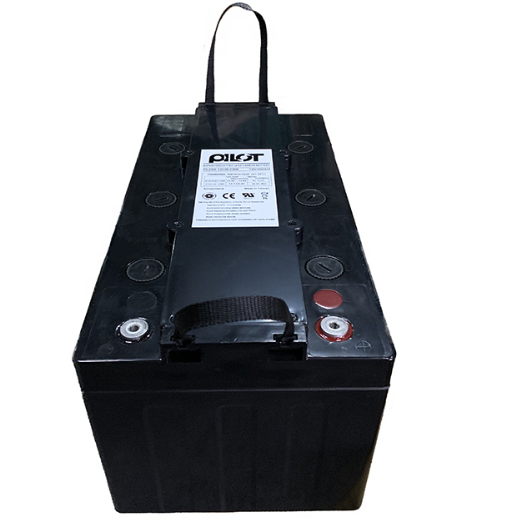

CBB Lead-Carbon Series

Cycle Ultra Long Life Type

  • Use: Solar or Wind Energy Storage Systems, Deep Cycle Systems, UPS Emergency Backup Power, Power Systems
★ Maintenance-Free
★ Leak-Free
★ High-Temperature Resistant
★ High Current
★ Long Lifespan
★ Low Self-Discharge Rate
  • Combines characteristics of both lead-acid batteries and supercapacitors
  • Excellent low-temperature start-up capability
  • Low internal resistance, with 1.7 times the charging performance of lead-acid batteries
  • Safe and effective explosion-proof venting design
  • Leak-proof, maintenance-free
  • Long lifespan, low self-discharge rate
  • Compliant with IATA/A67 and IMDG/238 regulations for transportation
  • UL 1989 certified





Model Name Voltage Capacity External Dimensions Internal Resistance Weight Max Float Charging Current
   V   AH/20HR Length Width Height With Terminals mΩ lbs kg A
PL120-12HB-CBB 12 120 18.9in 480mm 7.87in 200mm 9.45in 240mm 9.45in 240mm 3.5 86.9 39.5 36
PL150-12HB-CBB 12 150 18.9in 480mm 7.87in 200mm 9.45in 240mm 9.45in 240mm 3.2 100.32 45.6 45
PL180-12HB-CBB 12 180 18.9in 480mm 7.87in 200mm 9.45in 240mm 9.45in 240mm 3 119.24 54.2 54
PL200-12HB-CBB 12 210 18.9in 480mm 9.84in 250mm 8.39in 213mm 8.39in 213mm 2.9 134.2 61 63
PL230-12HB-CBB 12 230 18.9in 480mm 9.84in 250mm 8.39in 213mm 8.39in 213mm 2.8 142.78 64.9 69
PL250-12HB-CBB 12 250 18.9in 480mm 9.84in 250mm 9.61in 244mm 9.61in 244mm 2.7 149.6 68 75
