Automotive Batteries

  • Use: Suitable for automobiles, trucks, buses, vessels, construction machinery, agricultural equipment, and other vehicles.

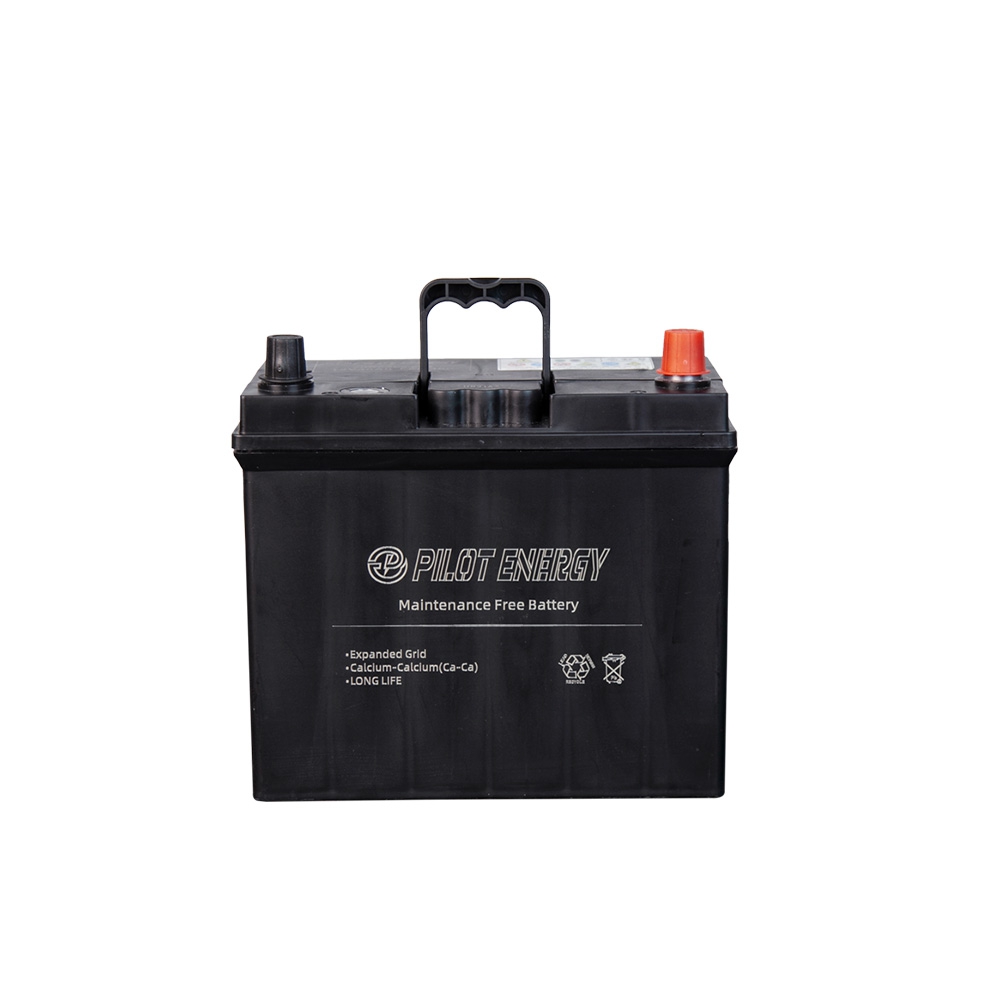

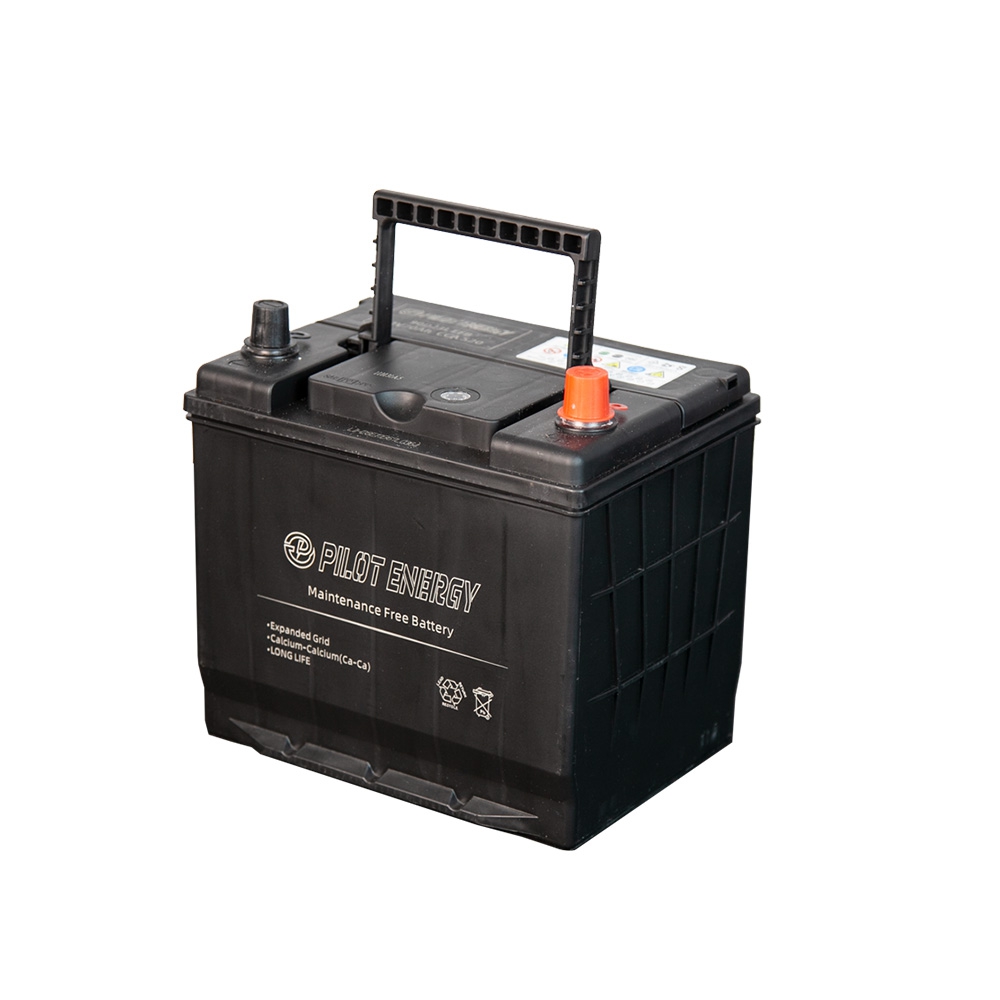

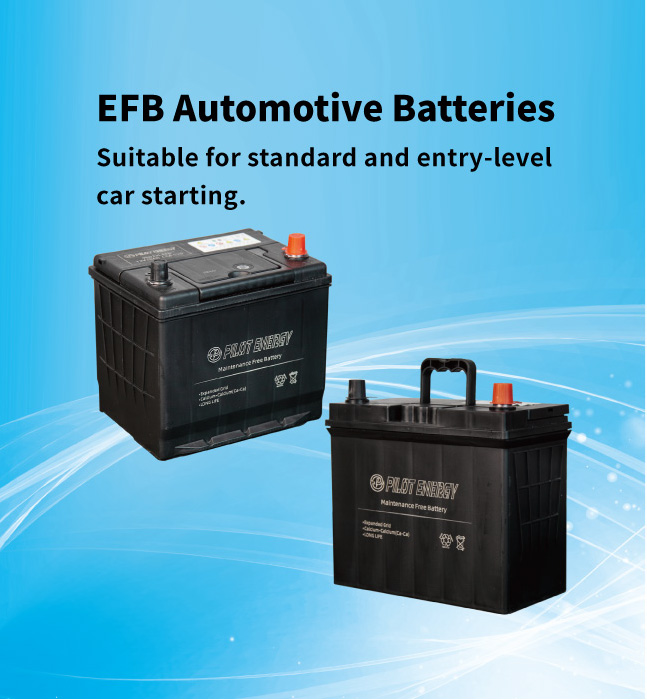

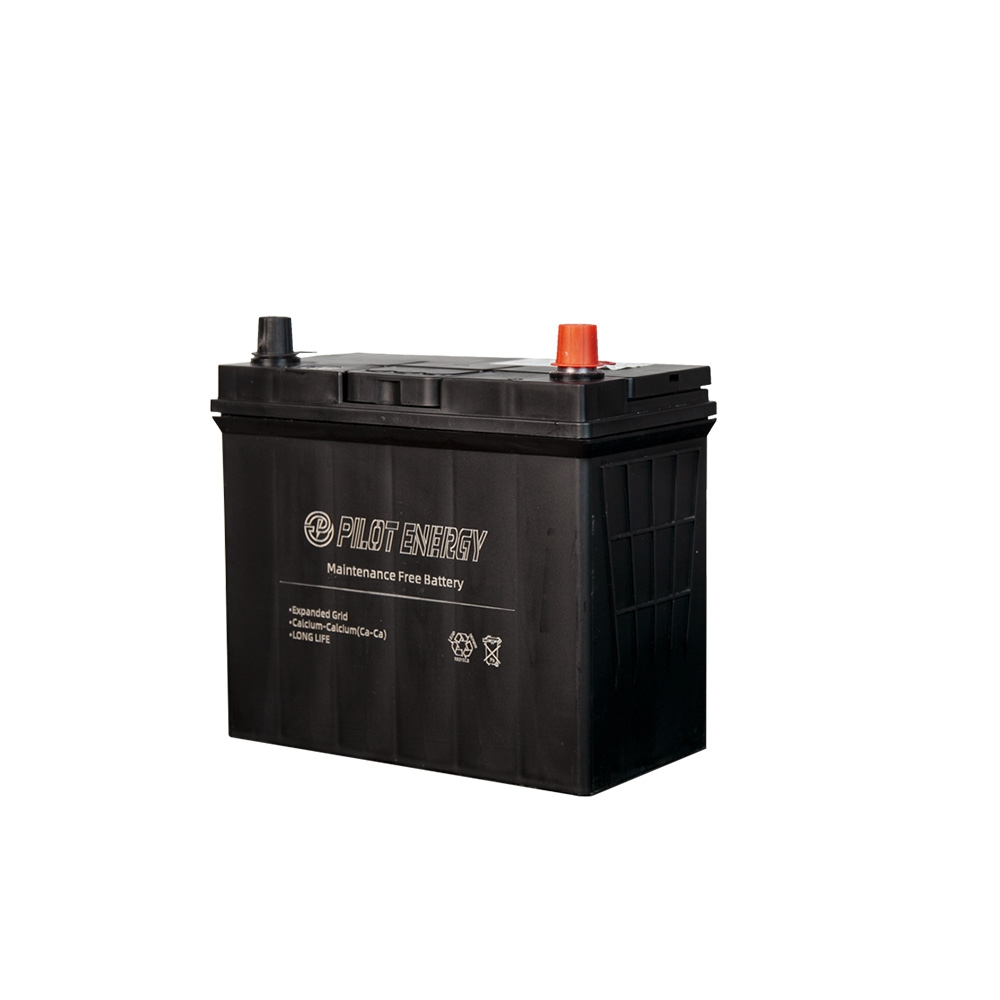

★ EFB Automotive Batteries
Excellent Performance/Supports Frequent Starts/Enhanced Charging Capability/Heat-Resistant Design

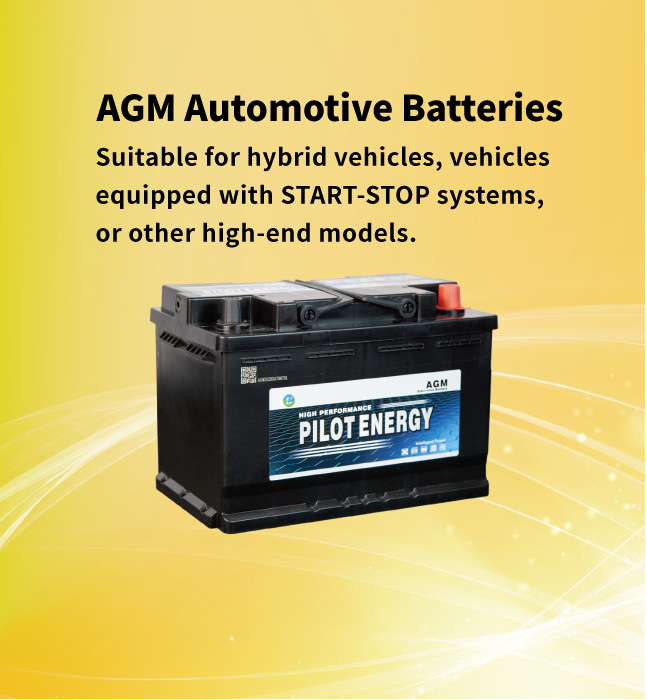

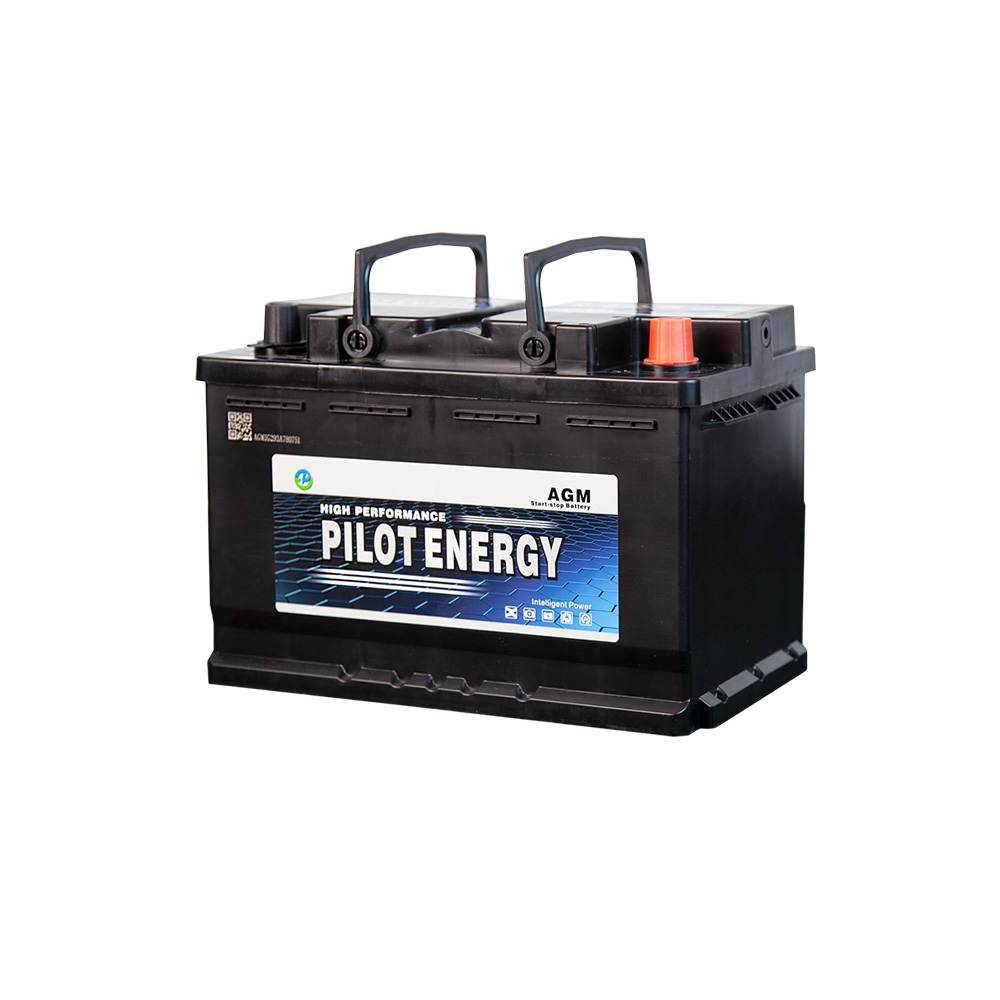

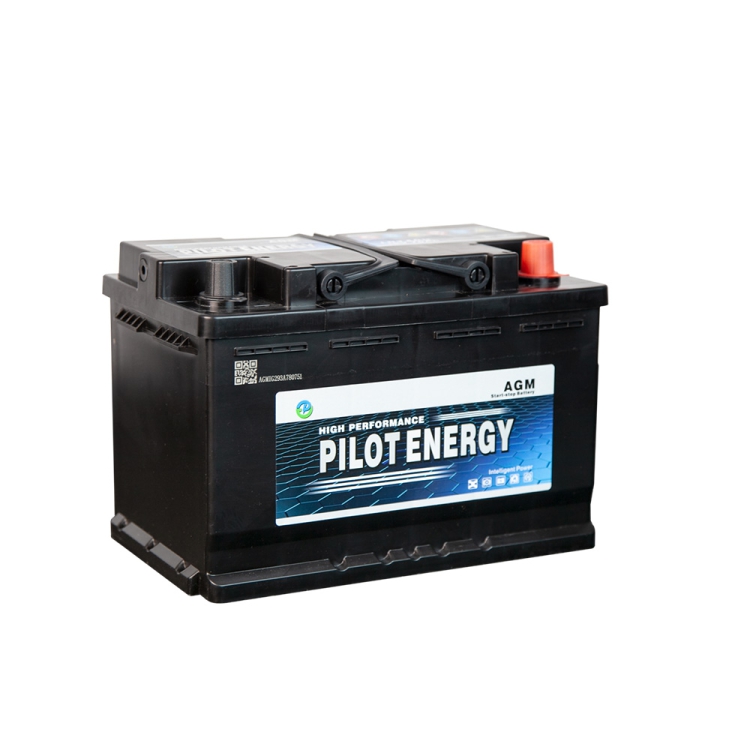

★ AGM Automotive Batteries
Maintenance-Free/Extended Lifespan/High Efficiency Starting/Fast Charging/Ultimate Safety

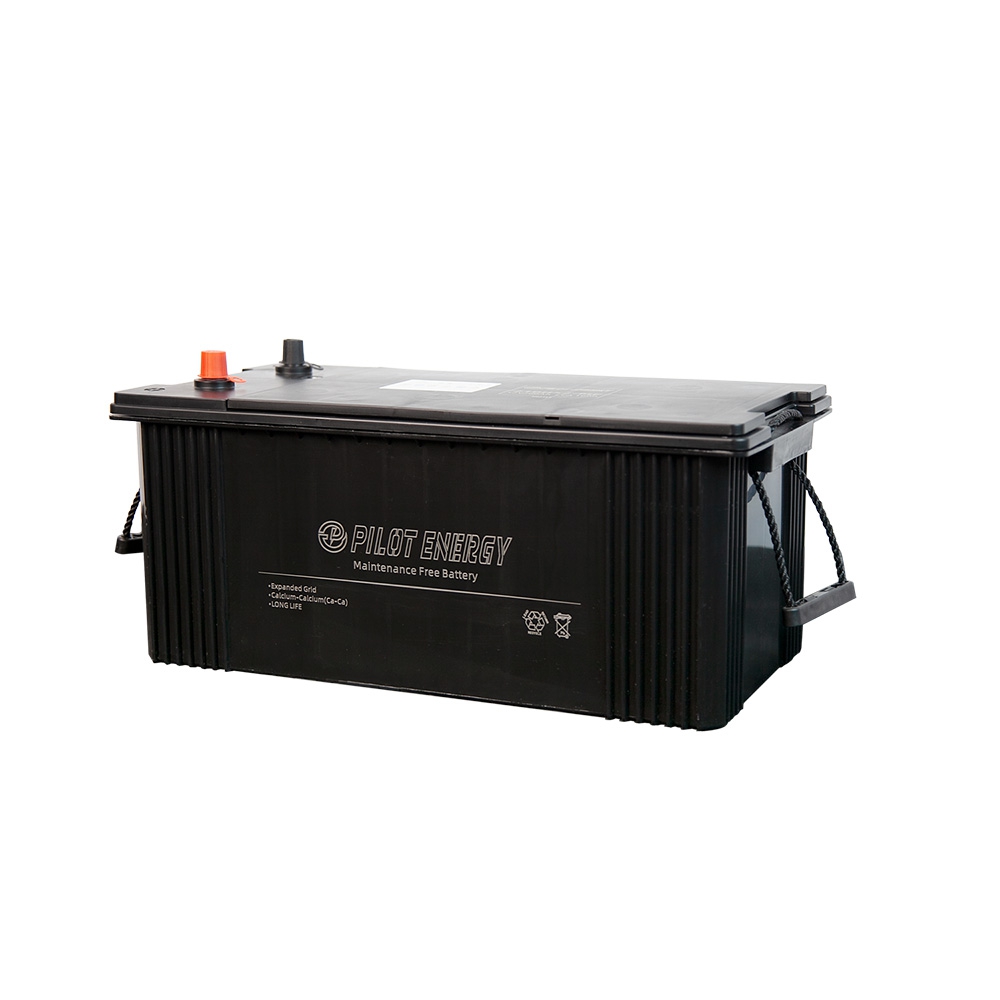

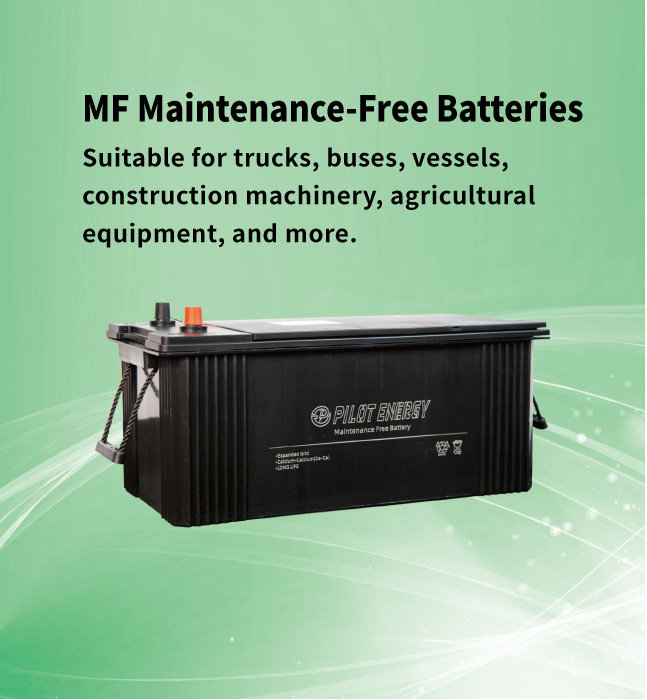

★ MF Maintenance-Free Batteries
High Efficiency Performance/Wide Temperature Range Compatibility/Strong Charging and Heat Resistance/Innovative Structure/Outstanding Storage Capability

Excellent Performance

The energy storage and cycle performance are superior to that of conventional lead-acid batteries.

Supports Frequent Starts

Adapts to higher start-up frequencies and extends idle running time.

Enhanced Charging Capability

Charging acceptance efficiency surpasses that of conventional flooded batteries.

Heat-Resistant Design

Improved thermal stability, suitable for engine compartments and high-temperature environments.

Maintenance-Free Design

Low self-discharge rate and minimal water loss, no need for water replenishment, simplifying use and maintenance.

Extended Lifespan

Excellent cycle life, built to last.

High-Efficiency Starting

Strong cold cranking current, delivering excellent starting performance.

Fast Charging

Exceptional charging acceptance, quickly replenishing power and absorbing braking energy.

Ultimate Safety

Can be tilted or inverted at any angle, with no acid leakage even if the casing is damaged, preventing vehicle corrosion.

High-Efficiency Performance

Outstanding starting discharge capability, providing stable power.

Wide Temperature Range Compatibility

Excellent low-temperature start performance, suitable for various temperature environments.

Strong Charging and Heat Resistance

Strong charging acceptance, capable of withstanding high-temperature usage demands.

Innovative Structure

Acid leak-proof, with excellent breathability and features for acid mist and explosion protection.

Outstanding Storage

Extremely low self-discharge rate, still capable of starting normally after long-term storage.

Series Model Name Voltage
V
Capacity
AH/20HR
CCA
Amp
External Dimensions Weight
kg
Length
(mm)
Width
(mm)
Height
(mm)
Overall Height
(mm)
EFB 70B24L(R) (EFB) 12 45 380 237 127 200 220 12
90D23L(R) (EFB) 12 70 520 230 173 200 220 16.5
100D26L(R) (EFB) 12 75 550 258 173 200 220 18.2
125D31L(R) (EFB) 12 90 655 304 173 200 220 22
AGM  LN2-AGM 12 60 660 242 175 190 190 18.6
 LN3-AGM 12 70 780 278 175 190 190 21
 LN4-AGM 12 80 800 316 175 190 190 24.3
 LN5-AGM 12 92 850 355 175 190 190 27
MF 130E41-MF 12 120 680 402 171 202 222 29
135F51-MF 12 120 770 506 180 208 231 33
160G51-MF 12 150 850 506 221 210 233 40
210H52-MF 12 200 1000 515 265 215 238 51
73011-MF 12 230 1150 515 265 215 238 51.2
68032-MF 12 180 950 505 220 192 214 41.2
