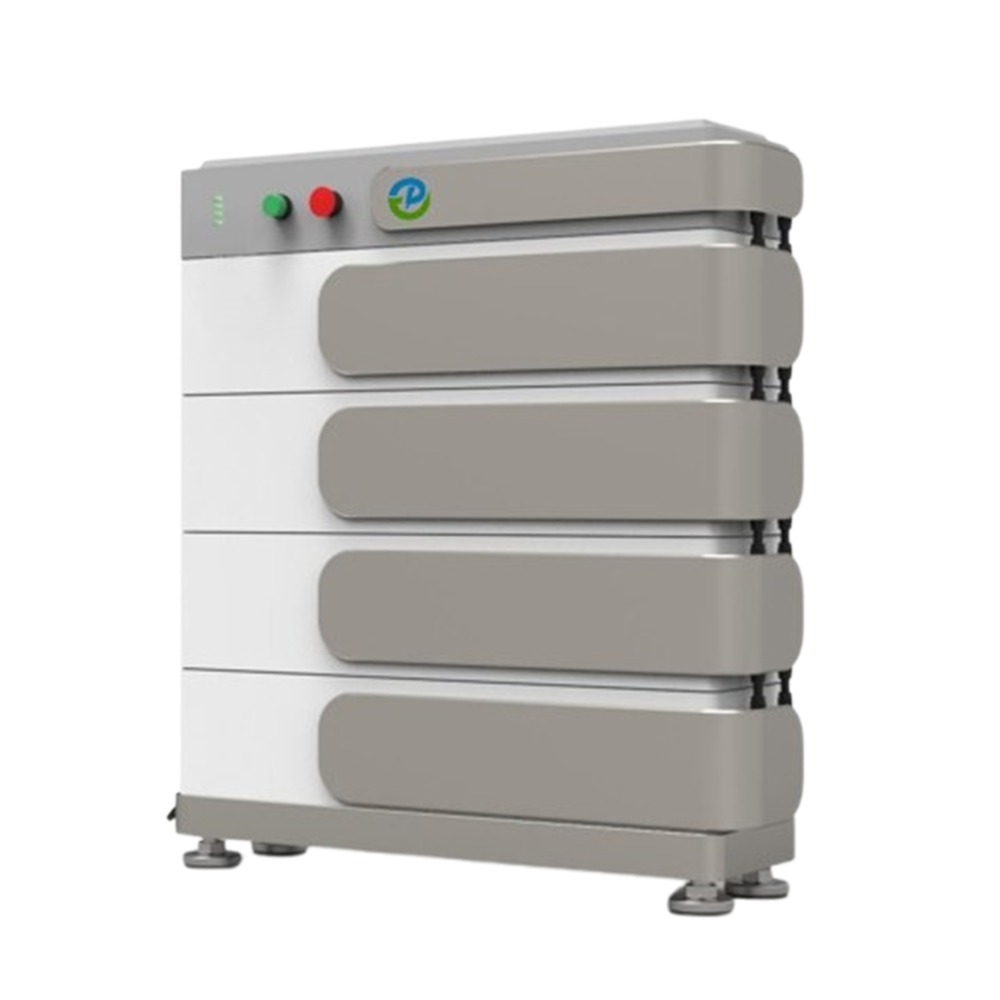

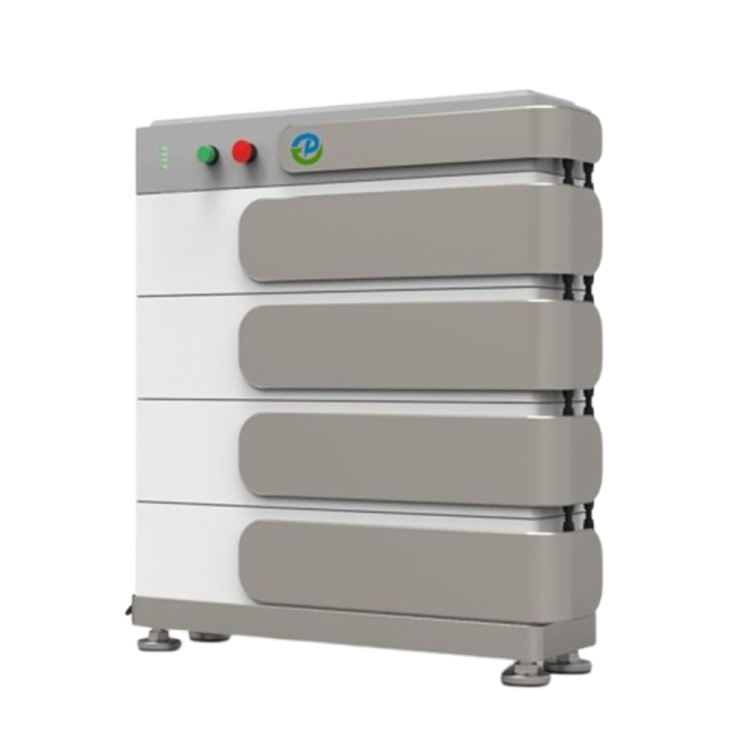

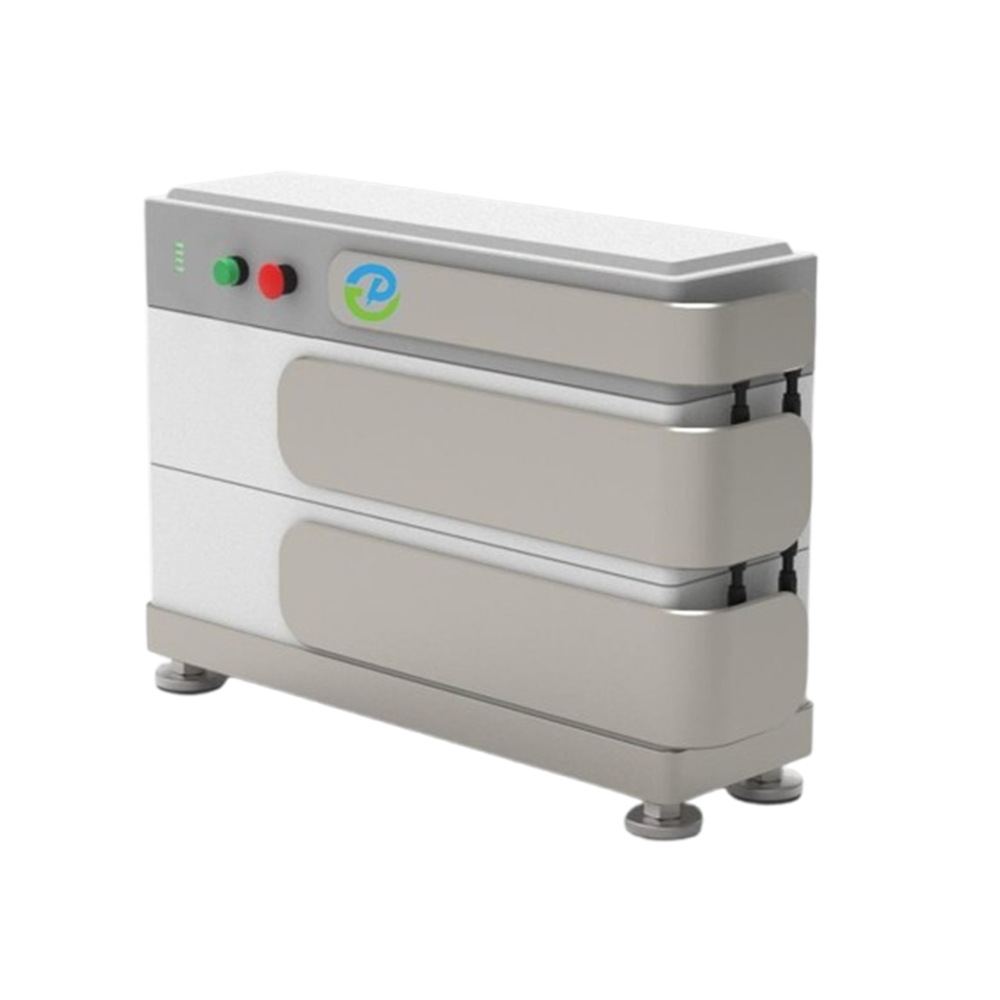

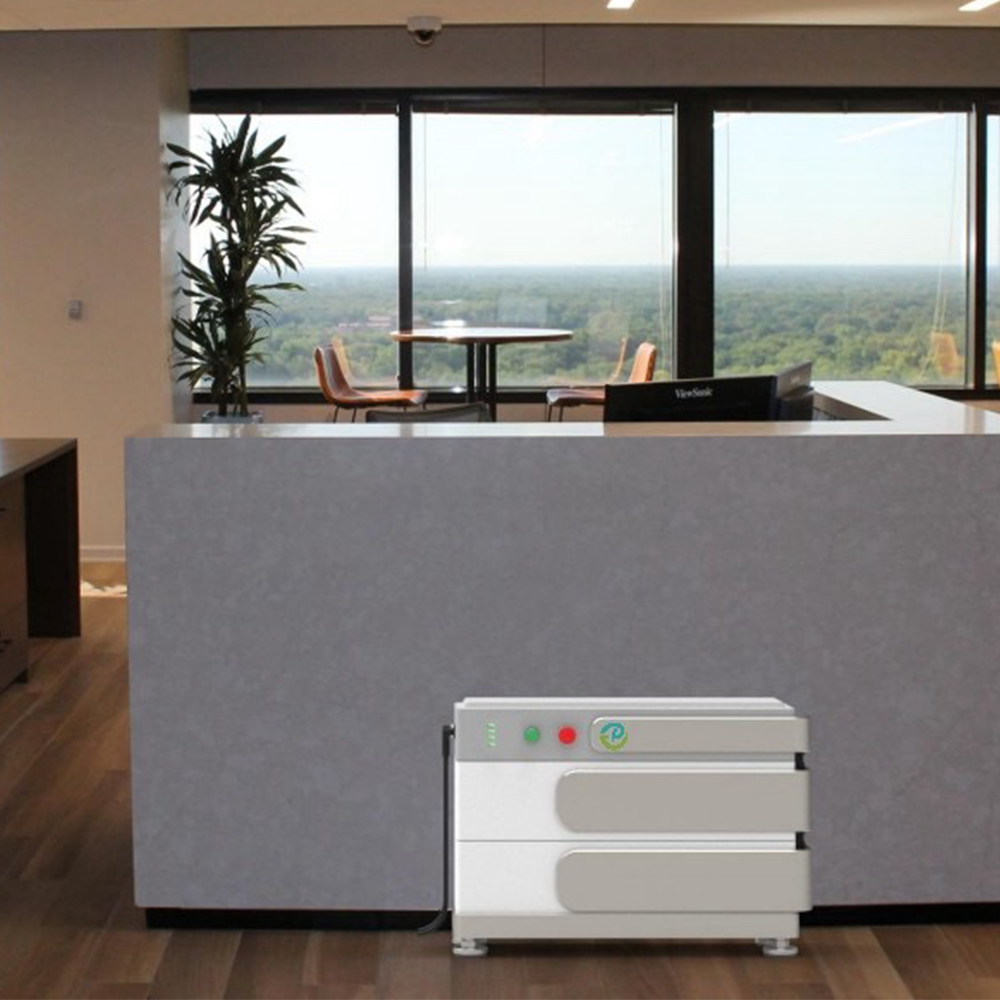

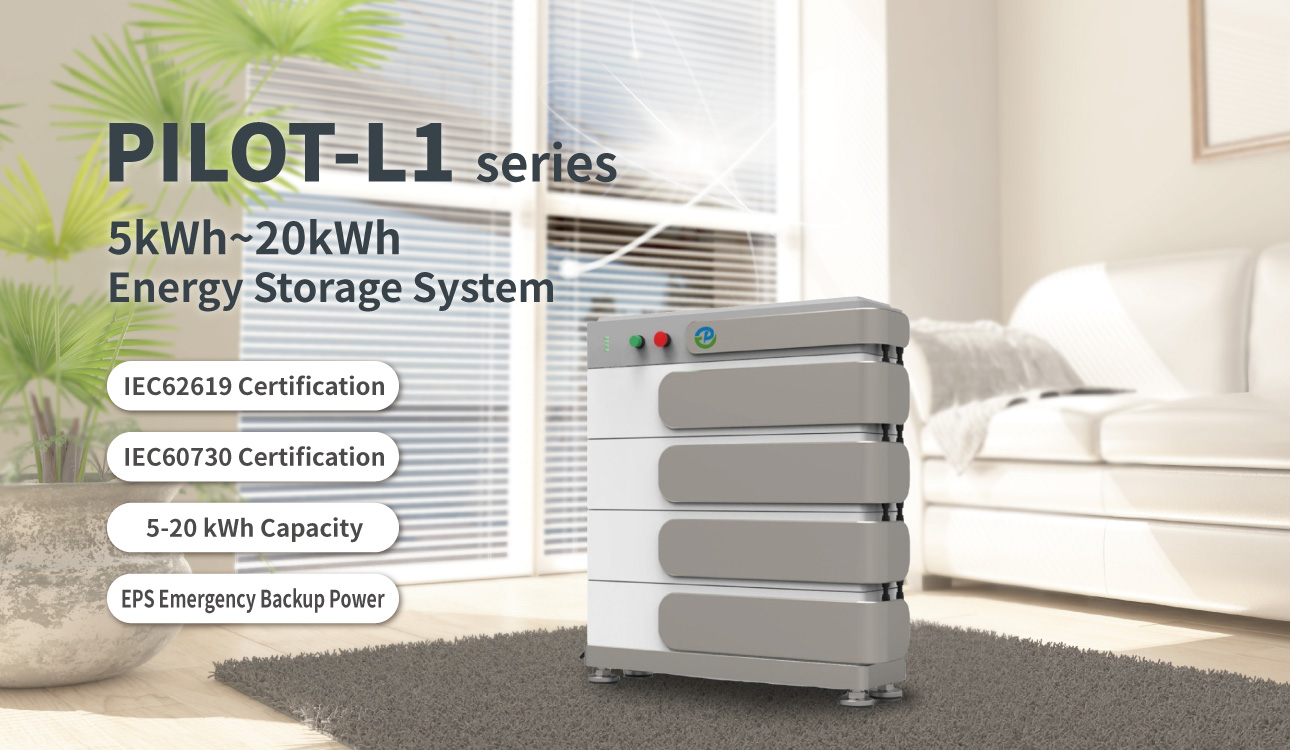

Home Energy Storage
|

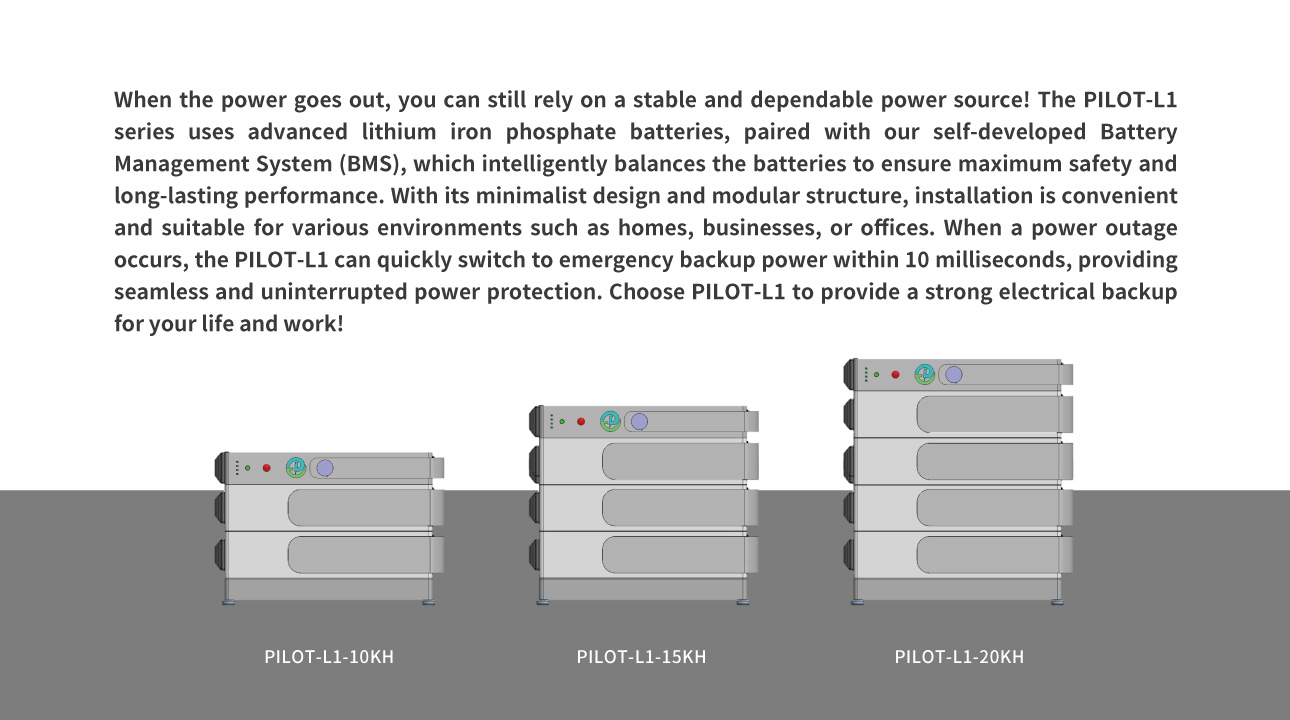

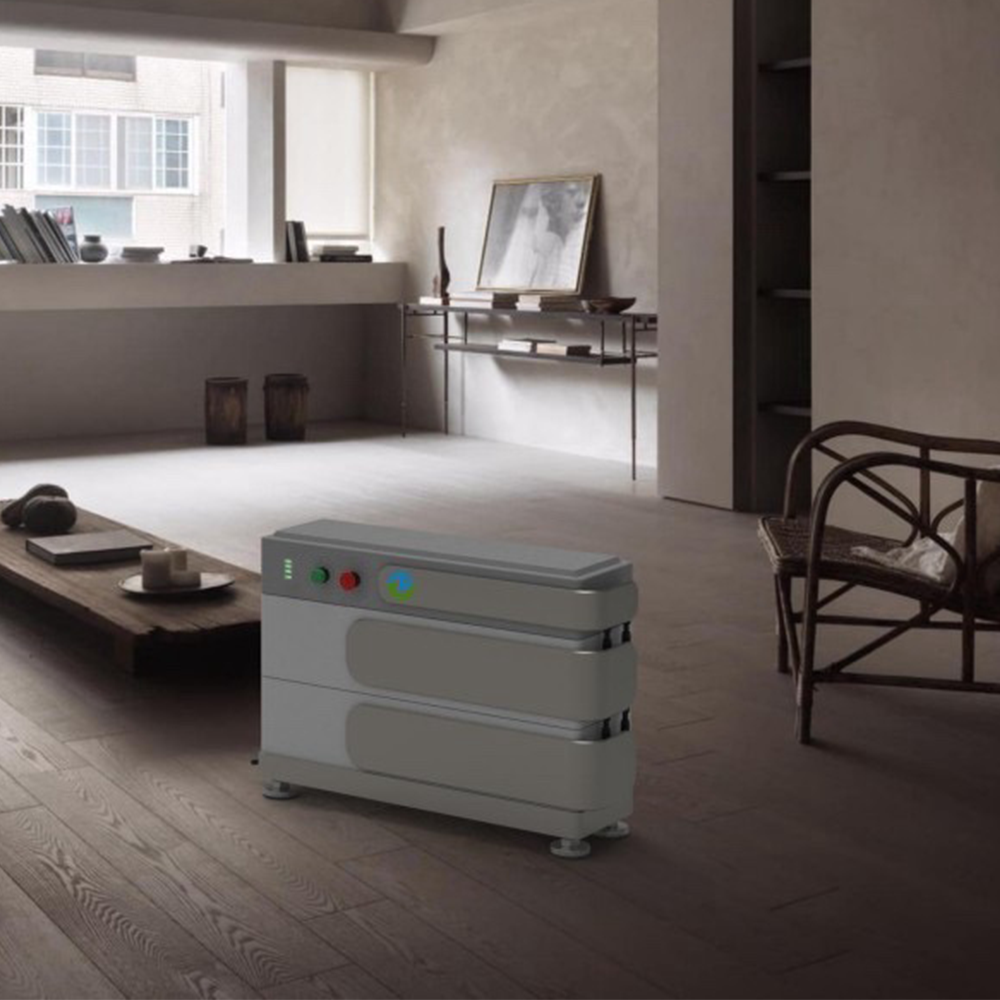

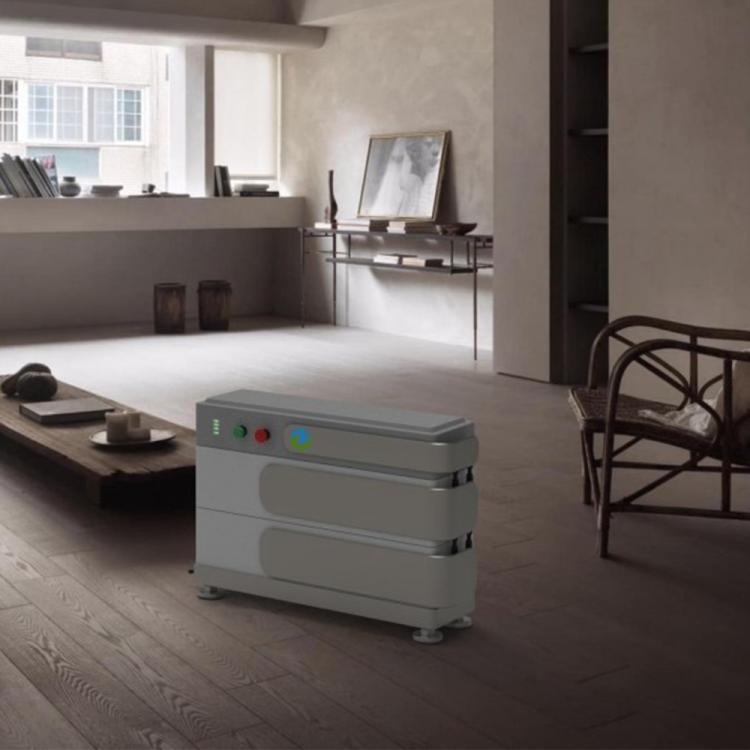

Model Name |
PILOT-L1-5KH |
PILOT-L1-10KH |
PILOT-L1-15KH |
PILOT-L1-20KH |
|
|
DC Side Specifications |
|||||
|
Battery Type |
Lithium Iron Phosphate (LiFePO₄) |
||||
|
Assembly Method |
1P16S |
2P16S |
3P16S |
4P16S | |
|
Rated Capacity |
5.1kWh |
10.2kWh |
15.3kWh |
20.4kWh | |
|
Maximum Charging Power |
4500W |
||||
|
Maximum Discharging Power |
4500W |
||||
|
Pulse Discharge Power |
5000W |
||||
|
Operating Voltage Range |
44.8V～56.8V |
||||
|
Maximum Charging Current |
90A |
||||
|
Maximum Discharging Current |
90A |
||||
|
Pulse Discharge Current |
100A |
||||
|
Rated Voltage |
51.2V |
||||
|
Charging Temperature Range |
0℃ ~ 55℃ |
||||
|
Discharging Temperature Range |
-15℃ ~ 55℃ |
||||
|
Environmental Humidity |
5 ~ 95% |
||||
|
Operating Altitude |
<3000M |
||||
|

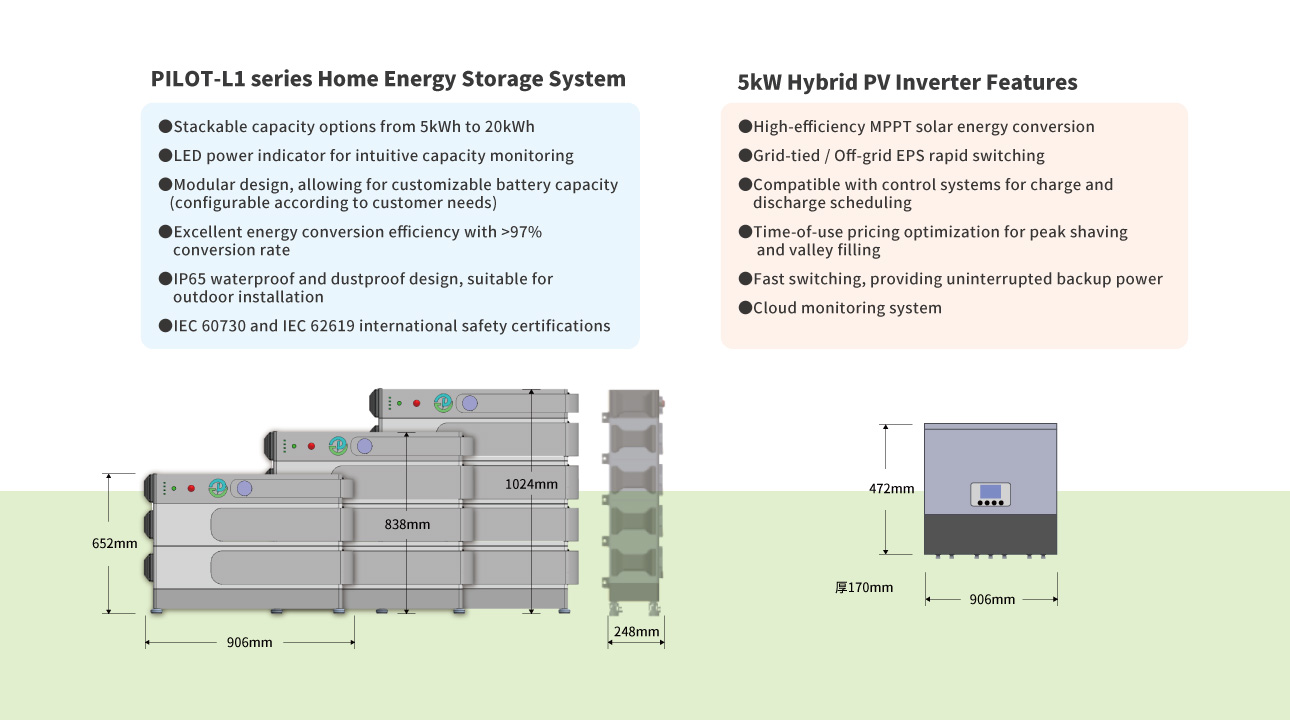

Dimensions (Length/Width/Height) |
906/248/439mm |
906/248/652mm |
906/248/838mm |
906/248/1024mm |
|
|
Weight |
70kg |
122kg |
172kg |
224kg |
|
|
Installation Environment |
室內或室外，站立安裝 |
||||
|
Waterproof Rating |
IP65 |
||||
|
Safety Certification |
IEC60730、IEC62619、UN38.3 |
||||
|
Battery Management System (BMS) Specifications |
|
|
BMS |
|
|
Communication Interface |
RS485 、CAN、TCP/IP 、UART |
|
Charging Protection Features |
OVP、OCCP、OTCP、Short-circuit |
|
Discharge Protection Features |
UVP、OCDP、OTDP、Short-circuit |
|
Cell Protection Features |
Over-charge、 Over-discharge、Over-temp.、Under-temp.、Over-current、Short-circuit |
|
DC Circuit Breaker |
MSD (Manual Service Device) |
|
Battery Level Indicator Light |
Four LEDs: One LED indicates 25% State of Charge (SOC), and all four LEDs lit together indicate 100% SOC. |
|
Cell Balancing |
YES |
|
Module Series/Parallel Connection with Upper and Lower Limits |
1-4 Groups in Series/Parallel (Capacity: 5-20kWh, Customizable) |
|

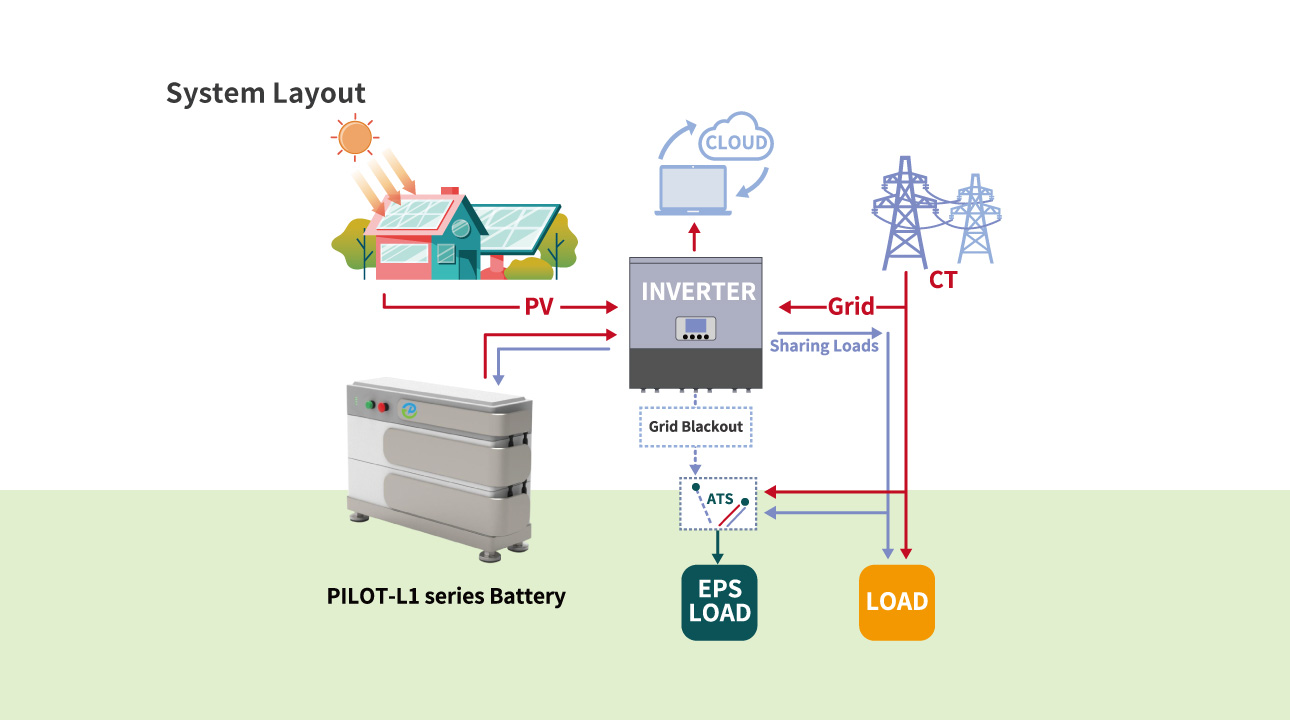

Inverter Specifications |
|
|
AC Input |
|
|
Voltage Range |
220V |
|
Frequency |
50 Hz / 60 Hz |
|
AC Output |
|
|
Rated power |
5kW/5kVA |
|
Rated voltage/frequency |
220V、230V ，50/60Hz |
|
Overload capacity |
125% |
|
Output waveform |
Pure sine wave |
|
Voltage error (resistive load) |
±1% |
|
Grid-tie and off-grid switching time |
≦ 10 ms |
|
Solar Photovoltaic (PV) Panel Input (DC) |
|
|
Maximum Power |
5kW |
|
Maximum voltage |
550V |
|
Operating voltage range |
80~550 |
|
MPPT voltage range |
240~500V |
|
MPPT channels |
2 |
|
Maximum short-circuit current |
16A |
|
Human-Machine Interface (HMI) |
|
|
Display |
Text display |
|
Communication interface |
RS485, Wi-Fi (Optional) |
|
Environment |
|
|
Operating temperature range |
-25°C ~ +60°C |
|
Humidity |
0~100% Non-condensing |
|
Operating altitude |
≤ 3000 m |
|
Mechanical Structure |
|
|
Protection rating |
IP4X |
|
Dimensions (WxHxD) |
480/472/170mm |
|
Weight |
24 kg |
|
Cooling method |
Natural cooling |
|
Installation method |
Wall-mounted installation |
|
Enclosure material |
Carbon steel |
|
Standard Compliance |
|
|
Electromagnetic compatibility |
IEC 61000-3-2; IEC 61000-3-11; IEC 61000-3-3; IEC 61000-3-12; |
|
Grid protection |
VDE 0126-1-1/A1, IEC 61727,IEC62116 |
