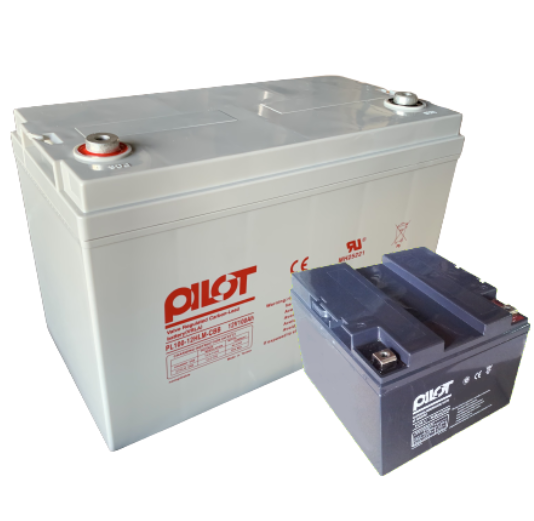

Universal Long Life Type

CBB Lead-Carbon Series

Universal Long Life Type

  • Use: Solar or Wind Energy Storage Systems, Deep Cycle Systems, UPS Emergency Backup Power, Power Systems
★ Maintenance-Free
★ Leak-Free
★ High-Temperature Resistant
★ High Current
★ Long Lifespan
★ Low Self-Discharge Rate
  • Features of both lead-acid batteries and supercapacitors
  • Excellent low-temperature start-up capability
  • Low internal resistance, with 1.7 times the charging performance of lead-acid batteries
  • Safe and effective explosion-proof venting design
  • Leak-proof, maintenance-free
  • Long lifespan, low self-discharge rate
  • Compliant with IATA/A67 and IMDG/238 regulations for transportation
  • UL 1989 certified





Model Name Voltage Capacity External Dimensions Internal Resistance Weight Max Float Charging Current
   V   AH/20HR Length Width Height With Terminals mΩ lbs kg (A)
PL28-12-CBB 12 28 6.54in 166mm 6.89in 175mm 4.92in 125mm     7 18.26 8.3 8.4
PL50-12-CBB 12 50 7.76in 197mm 6.5in 165mm 6.69in 170mm     5.5 31.02 14.1 15
PL65-12-CBB 12 65 13.78in 350mm 6.54in 166mm 6.85in 174mm     6 45.1 20.5 19.5
PL75-12I-CBB 12 75 10.24in 260mm 6.61in 168mm 8.31in 211mm 8.43in 214mm 5.5 51.26 23.3 22.5
PL100-12HLM-CBB 12 100 12.91in 328mm 6.81in 173mm 8.43in 214mm 8.74in 222mm 4.8 66 30 30
PL130-12HLMA-CBB 12 130 16.02in 407mm 6.81in 173mm 8.27in 210mm 9.69in 246mm 4 81.4 37 39
