  • 鉛酸電池

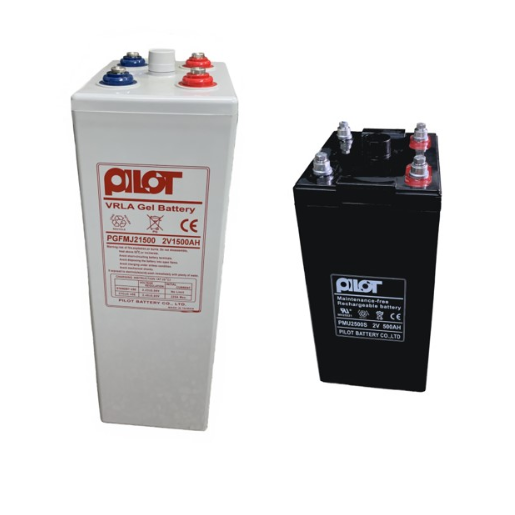

2V單體超長壽命型

CBB碳鉛系列

2V單體超長壽命型

  • 用途: 太陽能或風能儲能系統、深循環系統、UPS緊急備用電源、電力系統
★免保養
★高容量
★輕量化
★深循環
★低自放率
★低內阻

具鉛酸電池和超級電容器的特性
優異的低溫啟動能力
低內阻、擁有鉛酸電池1.7倍充電性能
安全有效防爆排氣設計
不會漏液、免保養
壽命長、自放電率低
交通運輸符合IATA/A67與IMDG/238條款
通過UL 1989認證

型號 電壓 容量 外觀尺寸 內阻 重量 最大浮充電流
   V   AH/10HR 長 寛 高 含端子 mΩ 磅 公斤 (A)
PGFMJ2600-CBB 2 600 8.11in 206mm 5.71in 145mm 25.43in 646mm 26.81in 681mm 0.47 102.3 46.5 120
PGFMJ2800-CBB 2 800 8.27in 210mm 7.52in 191mm 25.43in 646mm 26.81in 681mm 0.46 125.4 57 160
PGFMJ21000-CBB 2 1000 8.27in 210mm 9.17in 233mm 25.43in 646mm 26.81in 681mm 0.45 149.6 68 200
PGFMJ21200-CBB 2 1200 8.27in 210mm 10.83in 275mm 25.43in 646mm 26.81in 681mm 0.44 173.8 79 240
PGFMJ21500-CBB 2 1500 8.27in 210mm 10.83in 275mm 25.43in 646mm 26.8in 681mm 0.28 209 95 300
PMU2100-CBB 2 100 6.69in 170mm 2.85in 72.5mm 8.07in 205mm 8.62in 219mm 1.1 12.83 5.83 30
PMU2120-CBB 2 120 6.69in 170mm 2.85in 72.5mm 8.07in 205mm 8.62in 219mm 0.93 14.08 6.4 36
PMU2150-CBB 2 150 6.77in 172mm 4.02in 102mm 8.07in 205mm 8.96in 227.5mm 0.8 17.82 8.1 45
PMU2200-CBB 2 200 6.81in 173mm 4.37in 111mm 12.99in 330mm 14.29in 363mm 0.6 29.7 13.5 60
PMU2250-CBB 2 250 6.81in 173mm 4.37in 111mm 12.99in 330mm 14.29in 363mm 0.58 31.46 14.3 75
PMU2300-CBB 2 300 6.73in 171mm 5.94in 151mm 12.99in 330mm 14.37in 365mm 0.55 41.8 19 90
PMU2350-CBB 2 350 6.73in 171mm 5.94in 151mm 12.99in 330mm 14.37in 365mm 0.53 43.12 19.6 105
PMU2400-CBB 2 400 8.31in 211mm 6.93in 176mm 12.99in 330mm 14.45in 367mm 0.5 57.86 26.3 120
PMU2500S-CBB 2 500 8.31in 211mm 6.93in 176mm 12.99in 330mm 14.45in 367mm 0.48 64.02 29.1 150
PMU2500-CBB 2 500 9.49in 241mm 6.77in 172mm 12.99in 330mm 14.4in 366mm 0.48 67.98 30.9 150
PMU2600S-CBB 2 600 9.49in 241mm 6.77in 172mm 12.99in 330mm 14.4in 366mm 0.46 71.28 32.4 180
PMU2600-CBB 2 600 11.85in 301mm 6.89in 175mm 13.03in 331mm 14.45in 367mm 0.46 80.3 36.5 180
PMU2800S-CBB 2 800 11.85in 301mm 6.89in 175mm 13.03in 331mm 14.45in 367mm 0.44 91.3 41.5 240
PMU21000S-CBB 2 1000 16.14in 410mm 6.89in 175mm 12.99in 330mm 14.37in 365mm 0.42 126.1 57.3 300
PMU21200S-CBB 2 1200 18.66in 474mm 6.91in 175.5mm 12.99in 330mm 14.37in 365mm 0.4 141.9 64.5 360
PMU21500S-CBB 2 1500 18.66in 474mm 6.91in 175.5mm 12.99in 330mm 14.37in 365mm 0.38 158 71.8 450
PMU22000S-CBB 2 2000 15.75in 400mm 13.71in 349mm 13.39in 340mm 14.69in 373mm 0.38 245.3 111.5 500
